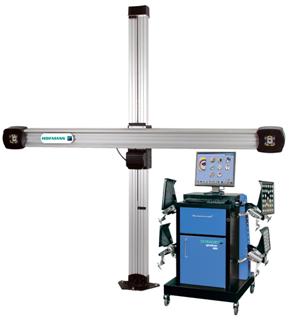

Geoliner 670 3D Aligner

Aligner Specifications

• Windows based DELL PC with National next business day hardware repair warranty
• Aligner meets rim diameter requirements of between 11 to 22 inches as standard.
• Optional clamp extensions increase maximum clamping diameter to 26”.
• Aligner caters for vehicles wheelbase of 79” -200”.
• Aligner is capable of an accuracy of + or – 0.01 minute.
• Aligner does not have or require electronic heads, ongoing or scheduled calibration.
• Aligner does not require run-out compensation, jacking, or jouncing during measurement of alignment angles.
• The cycle time of the aligner is under 3 minutes for full live alignment readings.
• Aligner supplied with a keyboard operated adjustable camera lift.
• Premium Turn tables and quick clamps included.
• ISO certification kit available at additional cost if required.
• Single Phase 240 volt operation.
